Blog posts tagged with 'curved steel applications'

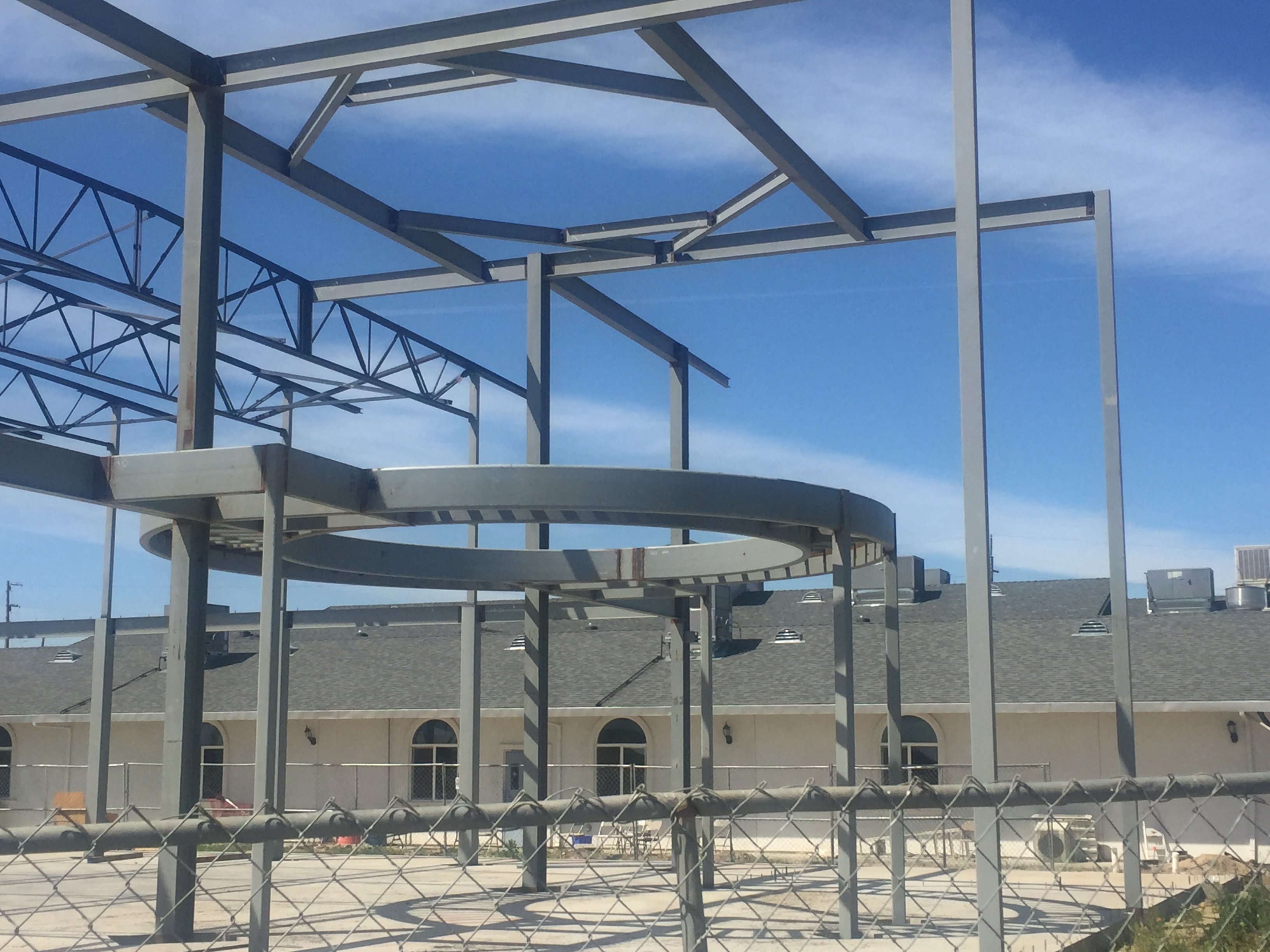

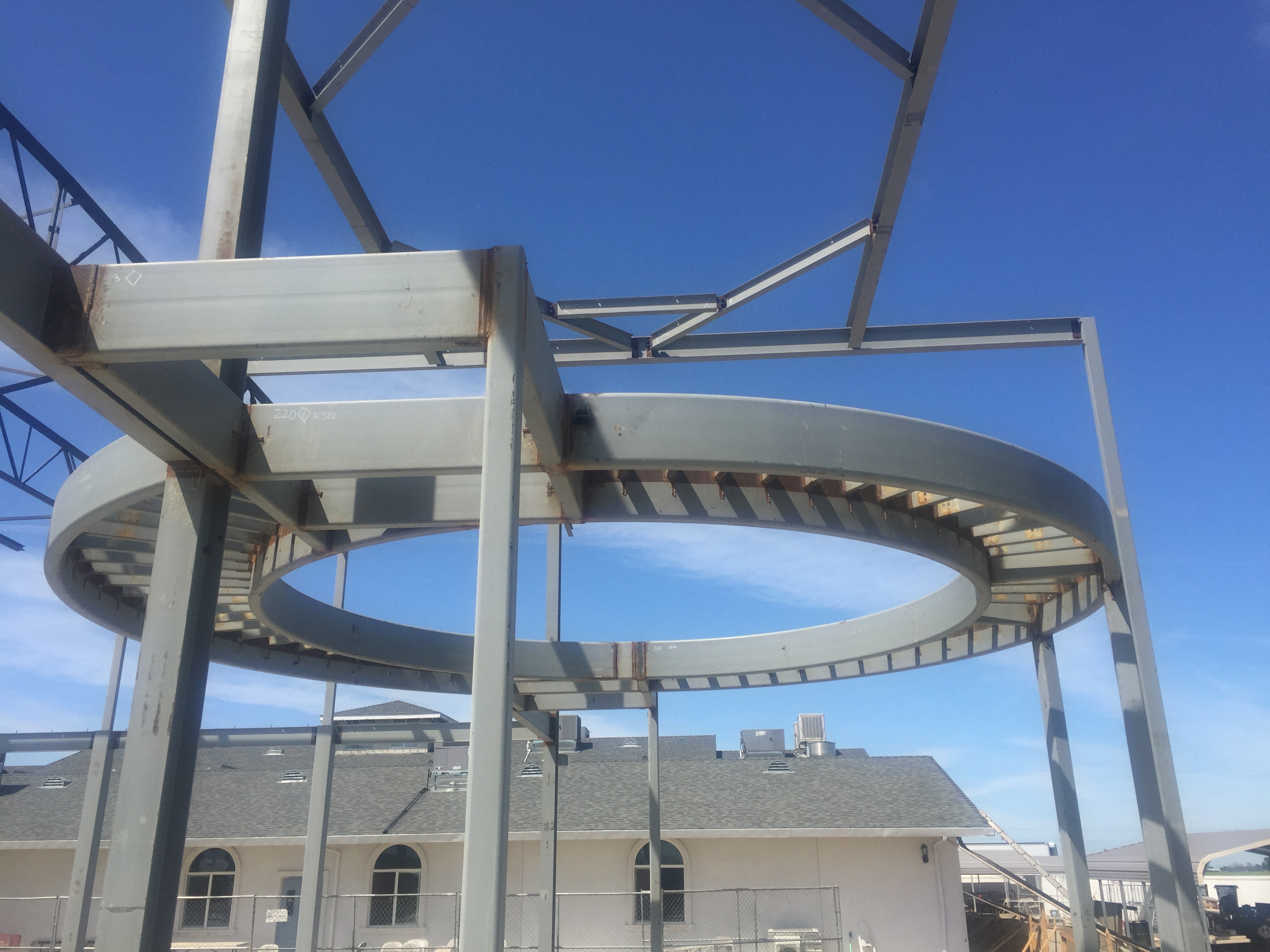

Curved Steel Canopy at the Calvary Chapel in Ontario, Oregon
Curved Steel Canopy at the Calvary Chapel in Ontario, Oregon

Albina recently bent various materials including tube steel, flat bar, pipe and angle for the Calvary Chapel in Ontario, Oregon. The Calvary Chapel is right on the Idaho border. Our bent material helped to create a lovely curved steel canopy for the chapel.

Materials Bent Include:

TS 10" X 3" X .375" WALL A500 GR B (7 lengths x 48 ft- bent the hard way to a 66 ft radius).

FB ½" X 4" A36 (2 lengths x 20 ft- bent the hard way to a 66 ft radius).

8" SCH40 A500 GR B (1 length x 42 ft).

TS 6" X 2" X .188" WALL A500 GR B (5 lengths x 48 ft).

1" X 1" X ¼" ANGLE A36 (6 lengths x 20 ft).

Attend the NASCC Show 2017 in San Antonio, Texas to Learn Why You Should Specify Curved Steel on Your Next Project!
This year's NASCC Show: The Steel Show will take place March 22-24 in San Antonio, Texas at the Henry B. Gonzalez Convention Center. The Steel Conference is the place for engineers, fabricators, detailers and erectors to learn about structural steel design and construction, to interact with their peers and to see the latest products for steel buildings and bridges. Technical sessions and educational seminars are offered throughout the week in addition to the trade show. Albina Co., Inc. will be exhibiting and we are excited to share information on curved steel and why it is the better choice in architectural design. Just a brief glimpse on why you should specify curved steel on your next project:
  • Reduced Risk
  • Controlled Costs
  • Sensitivity to the Environment
  • An award winning project that stands out from the rest
R.O.L.L.-I.T. R: Recycled Material & Reduced Schedules O: On-hand & Odd Shapes L: Look & Laurels L: Less Labor Intensive & Lower Design Costs IT: Information Technology & Information Sharing: For more information, check out our "Why Curved Steel" information guide on our website and sign up for the NASCC Show today at AISC.org.
Curved Steel Provides Eye Catching Roof Structure for Religious Building
Albina Co., Inc. recently bent various pieces of tube steel to form an eye catching curved roof structure for a religious building in Lodi, California. The material consisted of tube steel 16" X 4" X .500" WALL A500 GR B bent the easy way to a tightest radius of 9’ 6 1/8” centerline radius and tube steel 14" X 4" X .375" WALL A500 GR B bent the easy way to a tightest radius of 12’ 0 ¼” centerline radius. [caption id="attachment_856" align="aligncenter" width="300"]Curved Tube Steel Curved Tube Steel[/caption] [caption id="attachment_857" align="aligncenter" width="300"]Curved Roof Structure Curved Roof Structure[/caption]
Structural Steel Bending at Peterson Auto Museum
Albina Co., Inc. bent 36 pieces of 6 5/8" OD X .375" wall round steel tubing and 384 pieces of 6" SCH80 6061-T6 ALUM to create the unique shape for the Peterson Auto Museum in Los Angeles, CA. Albina cut, bent and trimmed all pieces per the provided drawings. While most of the bent material was covered with the "skin" of the building, the bent steel parts are what gave the museum its' unique shape and appearance. Every part was slightly different and needed to be processed to very tight tolerances. Photos courtesy of Zahner. [caption id="attachment_727" align="aligncenter" width="300"]Peterson Auto Museum Bent Pipe Supports Peterson Auto Museum Bent Pipe Supports[/caption] [caption id="attachment_728" align="aligncenter" width="300"]Peterson Auto Museum Bent Pipe Supports Peterson Auto Museum Bent Pipe Supports[/caption] [caption id="attachment_729" align="aligncenter" width="300"]Peterson Auto Museum Exterior Peterson Auto Museum Exterior[/caption]
Curved Steel Sign at Village at the Peaks Shopping Center
How do you catch the attention of holiday shoppers this time of year?  Place a decorative, eye-catching, ornamental sign at the entrance to your shopping center! Albina Co., Inc. can help you vision become a reality. Albina Co., Inc. recently completed another ornamental curved steel sign for the  Village at the Peaks shopping center in Colorado. The curved steel materials included bent wide flange W12 X 79# A992 the hard way and bent tube steel TS 2" X 2" X .250" WALL A500 GRB. [caption id="attachment_706" align="aligncenter" width="300"]Curved Steel Sign Village at the Peaks Curved Steel Sign Village at the Peaks[/caption]
Curved Steel Pedestrian Bridge Woodburn, OR.
Albina Co., Inc. recently bent various sizes of tube steel to help create a beautiful curved steel pedestrian bridge in Woodburn, OR. Materials we worked with: TS 4" X 4" X .188" WALL A500 GR B. 65 lengths rolled anywhere from a 30 ft radius to a 300 ft radius. TS 4" X 2½" X .188" WALL A500 GR B. 28 lengths rolled anywhere from a 30 ft radius to a 120 ft radius. TS 4" X 1½" X .120" WALL A500 GR B. 36 lengths rolled anywhere from a 30 ft radius to a 300 ft radius. [caption id="attachment_690" align="aligncenter" width="300"]Curved Steel Pedestrian Bridge Woodburn, WA. Curved Steel Pedestrian Bridge Woodburn, WA.[/caption] [caption id="attachment_691" align="aligncenter" width="300"]Curved Steel Pedestrian Bridge Woodburn, WA. Curved Steel Pedestrian Bridge Woodburn, WA.[/caption]
Curved Steel Bends for Marine and Locomotive Parts In Honor of Veterans Day
In honor of Veteran's Day, I thought I would share a PT-658 boat restoration project that Albina Co., Inc. participated in. Albina bends and curves steel parts used on locomotive frames, boat frames, deck rails and even components for homeland security helping to protect our docks and ports. One example includes, PT-658, the last remaining operable PT boat from World War II. Albina bent and donated 3/4" Sch40 Bare pipe bends to form a protective railing for the deck mounted guns and 5” OD x .120” wall stainless steel exhaust tubing for the Packard Diesel engines and 1/2” OD x .065” wall T304 stainless steel bends (coils) around the 5” OD stainless material to cool the extremely hot exhaust tubes. [caption id="attachment_673" align="aligncenter" width="224"]steel bending for pt boat WWII steel bending for pt boat WWII[/caption] [caption id="attachment_674" align="aligncenter" width="224"]steel bending for pt boat WWII steel bending for pt boat WWII[/caption] [caption id="attachment_675" align="aligncenter" width="300"]steel bending for marine steel bending for marine application[/caption] [caption id="attachment_676" align="aligncenter" width="300"]steel bending for locomotive steel bending for locomotive[/caption]
Look Around: We've Got You Covered
When people ask me what I do and where I work, I get excited to tell them the answer because it almost comes as a surprise when I describe what our company does. When I say, " I work for a steel bending and fabrication company" many people look at me inquisitively and ask "so what does that mean?" Since many of the products we make require someone to look above eye level, my common response is "next time you are outside, look up, look around, any time you see bent steel on a canopy, a roof truss, a store front...those are the kinds of things we make." Many people go as far as to comment, "I never really thought about the fact that the steel has to be bent somehow!" So next time you look up and see a curved steel structure, think of Albina. "We've Got You Covered!"
Oregon State University Student Experience Center Canopy
The bending portion of this project required very large HSS rectangular tubing to be bent consistently from piece to piece with little to no deformation. Albina bent 8 lengths of TS 20” x 12” x .500” wall A500 Gr. B, all over 70 ft long. Albina also bent 44 lengths x 60 ft and 23 lengths x 25 ft of TS 6” x 3” x .313” wall A500 Gr. B, this material was “double bent” the easy-way and the hard-way. Fought & Co., a structural steel fabrication shop located in Tigard Oregon, teamed up with Albina to successfully produce the required canopy. Albina was tasked with the steel bending while Fought was tasked with the fabrication. Albina recently published an article in Metal Architectural (click here to read) highlighting the Student Experience Center Curved Steel Canopy project. curved steel canopy at student experience center OSU-1
There is a Price and There is a Cost
When it comes to choosing which vendor you are going to use for a job, are you just buying on price? Please don't. There is a price, and an ultimate end cost for every job you do. Price vs. Cost The price of a competitor might be below ours, but when you add up all of the actual costs to receive and install the material, is there really a cost savings? If you chose the lowest price, you may deal with late delivery, poor quality or incorrect parts and a lack of or delayed communication. If you choose the lowest price, you will get what you pay for. Risk vs. Reward It might seem like a risk to purchase from a supplier that isn't the "lowest price." The rewards are greater than the risk. Albina will provide you with a "fair price" and we will provide you with a better quality product. We will provide you the correct parts the first time. We will provide on-time delivery. Our trained, experienced staff will provide unmatched service and communication related to every aspect of your project. Albina Co., Inc. Steel Bending Experts
