Angle
We bend all sizes of angle that the mill produces, up to 8" x 8" x 1*1/4". The first two numbers in angle specify the length of each leg. The third number specifies the thickness of the angle.
We can bend all types of angle as well; including aluminum, stainless and carbon steel. Carbon angle (mill produced) is classified as ASTM A36 resulting in a yield point (PSI) of 36,000 minimum.
We bend all stock lengths as well as non-stock lengths. Stock lengths range from 20 to 40 feet.
Angle is produced with equal legs and unequal legs. Unequal legs would measure differently on the horizontal leg versus the vertical leg.We have the ability to bend angle with the leg in, leg out, heel in, heel out and heel up.
Bent angle can be used for many different applications. The most common application would be angle flanges which are full circles that are used to join sections of pipe together. Bent angle is also used for canopies, roof trusses and tunnel shoring applications.
Leach Botanical Gardens Portland, Oregon

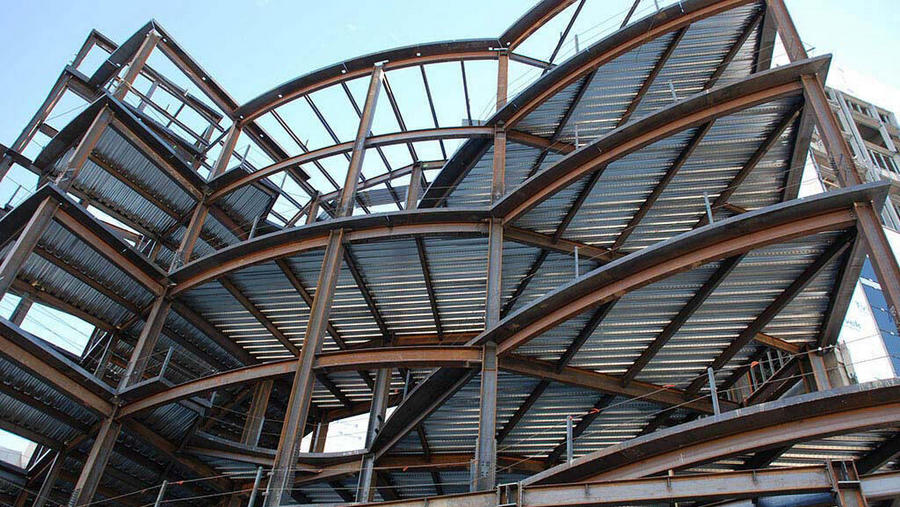

Curved Angle for Healthcare Building

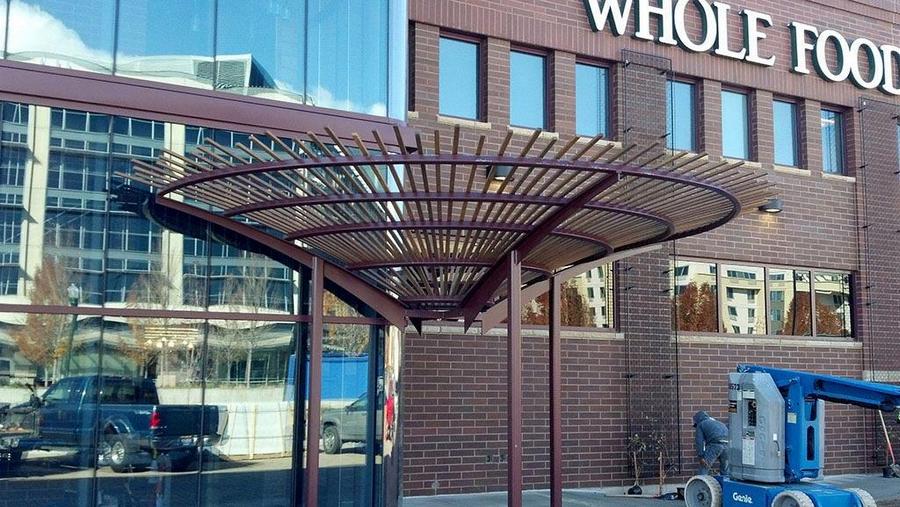

Curved Angle for Whole Foods Grocery Store Entry

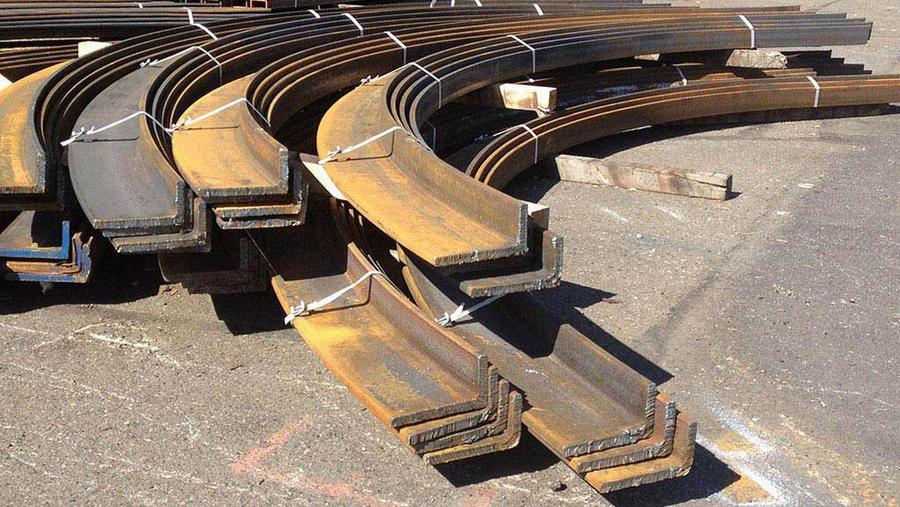

Curved Angle Leg Out

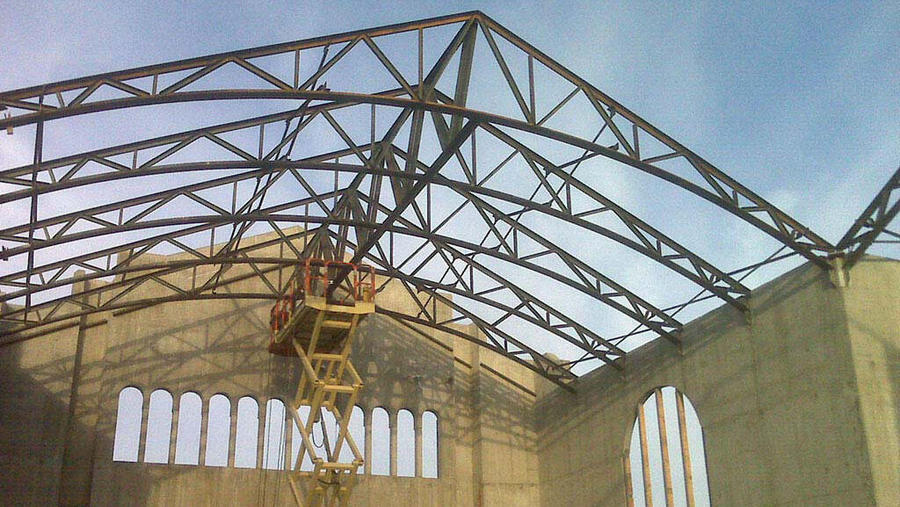

Curved Angle for Holy Redeemer Church Roof Trusses
Curved Angle Leg In
Curved Angle Leg Out to a Tight Radius
Curved Angle Leg Out
SHOW ME MORE WORK EXAMPLES!
ARCHITECTURAL INSTALLS, SPIRAL STAIRCASES & OEM PARTS
Printer Friendly Version
Capacities Chart
| Section | 3D Image | 2D Image | Photo | Capacities |
|---|
| Angle Leg Out |  |
 |
 |
All sizes through 8" x 8" x 1¼" |
| Angle Leg In |  |
 |
 |
All sizes through 8" x 8" x 1¼" |
| Angle Heel In |  |
 |
 |
All sizes through 8" x 8" x 1¼" |
| Angle Heel Out |  |
 |
 |
All sizes through 8" x 8" x 1¼" |
| Angle Heel Up |  |
 |
 |
All sizes through 8" x 8" x 1¼" |
