Spiral Staircase at the Winter Park Event Center is both a Structural Masterpiece and Visual Delight
Spiral Staircase at the Winter Park Event Center is both a Structural Masterpiece and Visual Delight

The Winter Park Events Center in Florida stands as a testament to modern architectural excellence, offering a blend of functionality and aesthetic appeal. One of its most striking features is the monumental circular staircase that gracefully ascends to the Rooftop Terrace, providing guests with a unique and memorable experience.

This freestanding spiral staircase is not only a focal point of the interior design but also a marvel of engineering. Crafted with precision, the staircase was constructed using various steel components, each meticulously bent and shaped to achieve the desired curvature and structural integrity.

Key Materials and Specifications:

  • TS 20" x 4" x .500" WALL A500 GR B:
    • 2 pieces spiral bent the easy way to a 7’-10” radius (inside upper and lower stringer)
    • 4 pieces spiral bent the easy way to a 10’-6” radius (outside upper and lower stringer)
    • 1 landing section bent the easy way to a 7’-10” radius (inside landing section)
    • 1 landing section bent the easy way to a 10’-6” radius (outside landing section)
  • TS 6" x 4" x .500" WALL A500 GR B:
    • 4 pieces spiral bent to a 10’-6” radius (outside upper and lower stringer sections)
    • 1 landing section bent to a 10’-6” radius (outside landing section)
  • FB ½" x 4" A36:
    • 5 pieces rolled flat the hard way and pulled to pitch by the customer to a 122.45” radius (top and bottom plates)
    • 1 landing section bent the hard way to a 7’-10” radius
  • 2" x 2" x 3/16" ANGLE A36:
    • 8 pieces rolled leg in to a 153.56” radius
    • 2 pieces rolled leg in to an 11’-0” radius
    • 6 pieces rolled leg out to a 117.90” radius
    • 2 pieces rolled leg out to a 7’-4” radius
  • TS 1½" x 1½" x .120" WALL A513:
    • 4 pieces rolled to a 160” radius (outside handrailing)
    • 3 pieces rolled to a 120” radius (inside handrailing)
    • 1 piece rolled to a 10’-9” radius (outside handrailing at landing)
    • 1 piece rolled to a 7’-7” radius (inside handrailing at landing)

Winter Park Spiral Staircase Lobby View

Winter Park Spiral Staircase

Winter Park Spiral Staircase Close Up

Winter Park Spiral Staircase Top Down View

The careful selection and manipulation of these materials ensure that the staircase is both a structural masterpiece and a visual delight. The use of rectangular and square tube steel (TS) components, along with flat bars (FB) and angle sections, allows for the creation of smooth, continuous curves that define the staircase's elegant spiral form.

Beyond its aesthetic appeal, the staircase serves a practical purpose, connecting the Grand Ballroom to the Rooftop Terrace. This design not only facilitates movement within the venue but also enhances the overall guest experience by providing a seamless transition between indoor and outdoor spaces.

The Winter Park Events Center, with its innovative design and state-of-the-art facilities, is an ideal location for weddings, corporate functions, and social gatherings. The combination of its architectural features, such as the spiral staircase, and its versatile event spaces make it a premier choice for hosting memorable events in Central Florida.

For more information or to inquire about hosting an event at the Winter Park Events Center, you can visit their official website. Photo credit: Staircrafters, Inc.



#precisionbending #steelfabrication #constructioninnovation #steelsolutions #nomma1958 #spiralstaircase #steelstairs #spiralstairs #spiralstairaware #spiralstringers #winterparkeventcenter #winterparkflorida #yoursteelbendingexperts #albinacoinc

"Migrations" by Olivia Guethling: A Stunning Symbol of Flight and Transformation
"Migrations" by Olivia Guethling: A Stunning Symbol of Flight and Transformation

Art has the power to inspire, transform, and connect us to the world around us. Migrations, an awe-inspiring installation by artist Olivia Guethling at GuildWorks, embodies these qualities with breathtaking elegance. This large-scale sculpture, depicting a migratory bird in motion, stands as a testament to both artistic vision and structural ingenuity.

A Monumental Installation

Standing 19.5 feet tall, 42 feet wide, and 16.5 feet deep, Migrations is a striking presence. Constructed from steel and architectural fabric, the piece captures the fluidity and grace of birds in flight while maintaining a strong, structured form. To achieve this intricate design, Albina bent various sizes of Schedule 40 pipe, ranging from 1-1/4” to 3” in diameter, demonstrating an impressive feat of metalwork.

A Journey Across Celebrated Venues

Migrations first took flight at Burning Man 2023, where it was unveiled in the vast Nevada desert among other visionary artworks. It later illuminated the Portland Winter Light Festival in 2024, captivating audiences with its ethereal presence. Today, the installation continues its journey and can be seen at OMSI (Oregon Museum of Science and Industry) in Portland, Oregon, where visitors can experience its beauty up close.

A Tribute to Movement and Change

The theme of migration is deeply woven into the fabric of our world—both in nature and human experience. This installation serves as a poetic reminder of the resilience, adaptability, and interconnectedness of all living beings. Whether viewed against the backdrop of a glowing festival or entrance to OMSI, Migrations encourages reflection on the movement that defines life itself.

Experience "Migrations"

For those in Portland, OMSI offers a unique opportunity to witness this masterpiece firsthand. Whether you’re an art enthusiast, a nature lover, or someone drawn to powerful visual storytelling, Migrations is not to be missed.

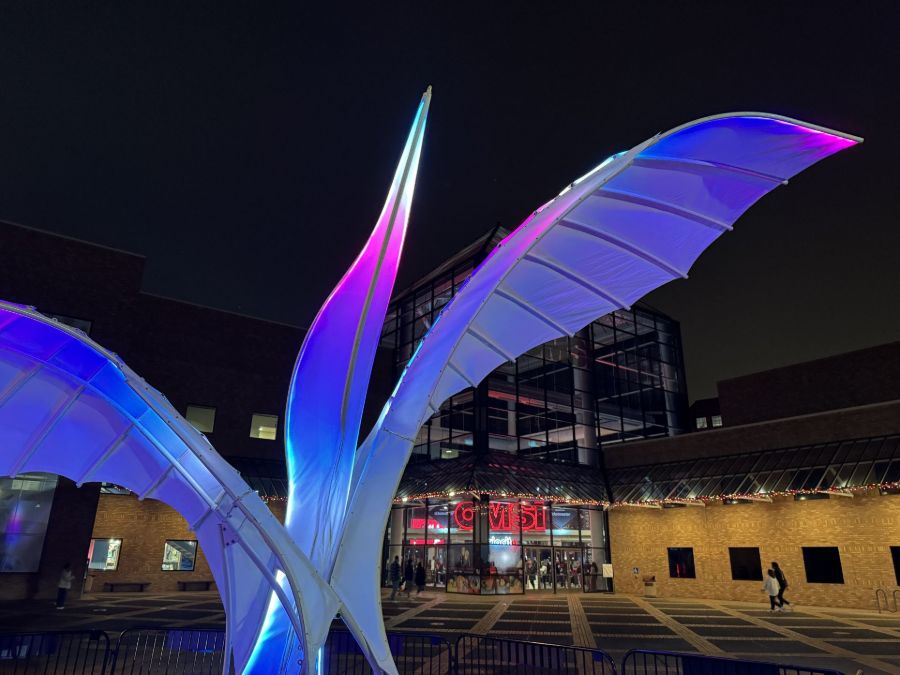

Migrations on Display at OMSI

Migrations on Display at Burning Man

Migrations on Display at OMSI

Migrations being assembled at GuildWorks

Migrations being assembled at GuildWorks



📷 Photo Credits: Olivia Guethling, Mar Ricketts, Brooke Smith Photography
🔗 Learn more: Migrations Project | OMSI Exhibit
